M42-5

Efficient, Versatile, Truck-Mounted Concrete Pump in Its Class
M42-5

The next generation of truck-mounted concrete pumps, the Putzmeister M42-5 truck-mounted concrete pump, features advanced maneuverability for a 4-axle chassis and weight indicators. It is equipped with the OSS system, allowing you to work in limited areas. The length of the concrete pump is less than 12 meters, and its weight is under 32 tons.

General Information


Feature Value
Arms 5
Folding RZ
Vertical Reach 41.6 m
Horizontal Reach (Gross) 37.3 m
Horizontal Reach (Net) 34.5 m
Reach Depth 31 m
Height in Open Position 8.6 m
Turn Range 365 degrees
Maximum Length of End Hose 4 m
Distribution Line Pressure DN125/5.5 / 85 mm/bar

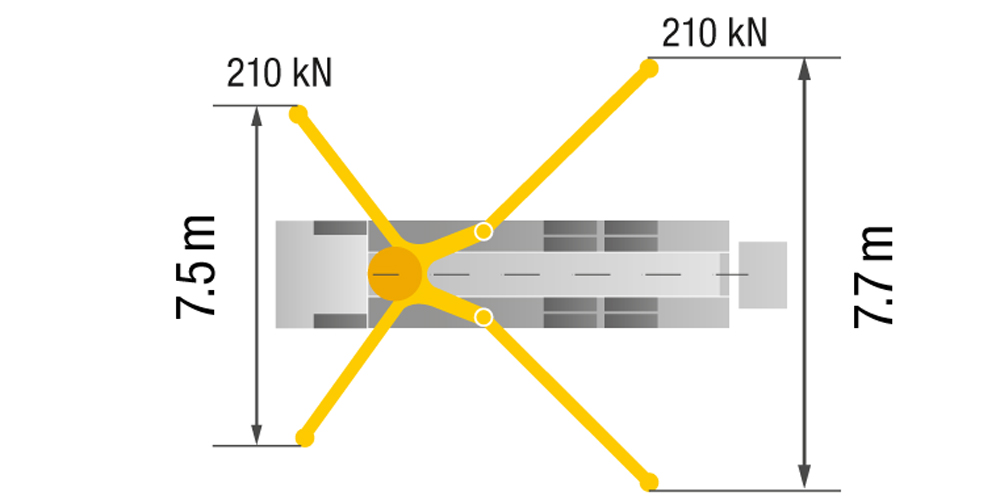

Standard Support Width (Front-Back) 7.5 / 8.3 m
OSS Support Width (Front-Back) 5.0 / 6.4 m
iSC Support Width (Front/Back) 2.6-7.5
Length x Width x Height 11.35 x 2.5 x 4 mm
Total Weight (approx.) Under 32,000 kg

M42-5
M42-5
M42-5
M42-5
M42-5
M42-5
M42-5
M42-5

Main Features

  • The gross weight carrying capacity, including reserves for operating materials, is less than 26 tons.
  • The fixed 5-arm placement boom, achieved through expertly laid-out distribution lines and a balanced steel structure.
  • Continuous smart ergonomic design for efficient operation.
  • Improved safety by considering existing standards and regulations more thoroughly.
  • Easy maintenance as a result of optimal accessibility and a suitable bolted concept.
  • Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard distribution line elbows), and reduced functional fluids (oil volume reduced by 30%).
PDF

Concrete Pump .17 iLS

Feature Value
Distribution Cylinder Diameter 250/2100 mm
Piston-Side Operating Delivery Capacity 170 m³/hr
Piston-Side Operating Delivery Pressure 85 bar
Piston-Side Operating Stroke Count 27

Concrete Pump .16 H LS

Feature Value
Distribution Cylinder Diameter 250/2100 mm
Piston-Side Operating Delivery Capacity 160 m³/hr
Piston-Side Operating Delivery Pressure 85 bar
Piston-Side Operating Stroke Count 26

Concrete Pump .16 H

Feature Value
Distribution Cylinder Diameter 230/2100 mm
Rotor-Side Operating Delivery Capacity 160 m³/hr
Piston-Side Operating Delivery Capacity 108 m³/hr
Rotor-Side Operating Delivery Pressure 85 bar
Rotor-Side Operating Stroke Count 31
