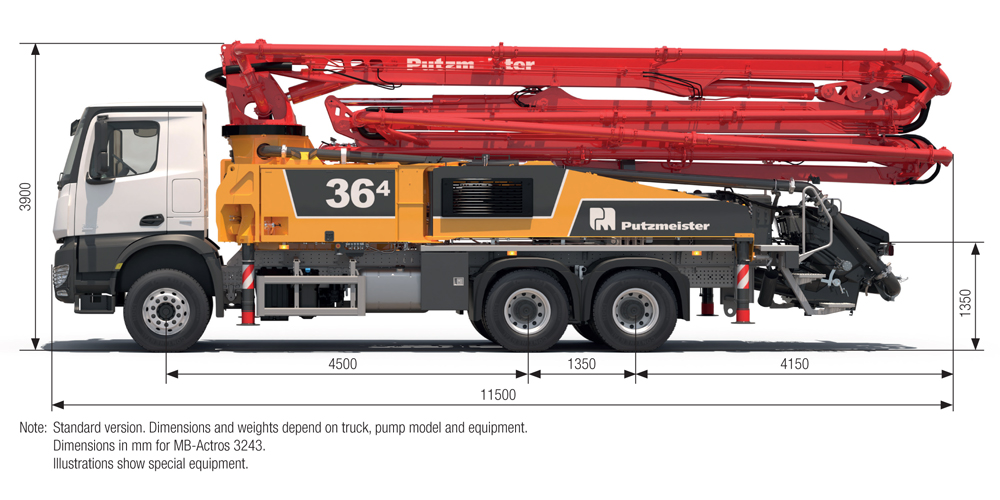

The M36-4 truck-mounted concrete pump reaches approximately 36 meters, providing excellent flexibility. The Z-folding, especially with its optimal folding characteristics, makes the truck-mounted concrete pump very suitable. Whether in a production facility, under a bridge, in underpasses, or in the construction of multi-story buildings, the machine becomes more suitable in terms of weight.
The M36-4 truck-mounted concrete pump is suitable for versatile tasks and easy to use. Due to its surprisingly low weight, it provides more space for loading accessories and operational materials, allowing for quick and economical access to the next use location. Furthermore, it operates in compliance with road regulations.
| Feature | Value |
|---|---|
| Arms | 4 |
| Folding | Z-type |
| Vertical Reach | 35.6 m |
| Horizontal Reach (Gross) | 31.4 m |
| Horizontal Reach (Net) | 28.9 m |
| Reach Depth | 23.1 m |
| Height in Open Position | 8.5 m |
| Maximum Hose Length | 4 m |
| Distribution Line Pressure | DN 125/5.5 mm/bar |

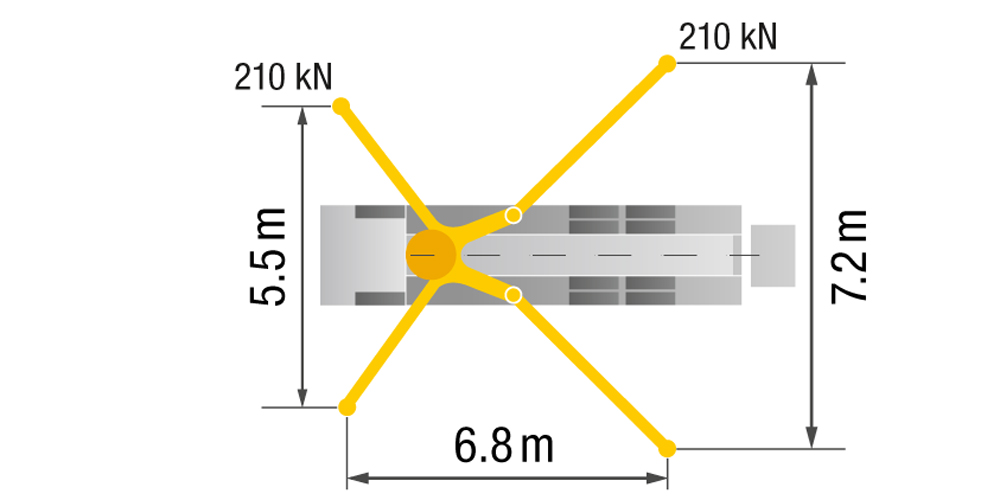

| Standard Support Width (Front-Back) | 5.5/7.2 m |
| OSS Support Width (Front-Back) | 4.0/5.9 m |
| ESC Support Width (Front-Back) | 4.0/5.1 m |
| Feature | Value |
|---|---|
| Distribution Cylinder Diameter | 250/2100 mm |
| Displacement Capacity in Piston Operation | 170 m³/hr |
| Displacement Capacity in Piston Operation | 85 bar |
| Stroke Count in Piston Operation | 27 |
| Feature | Value |
|---|---|
| Distribution Cylinder Diameter | 230/2100 mm |
| Displacement Capacity in Rotor Operation | 160 m³/hr |
| Displacement Capacity in Piston Operation | 108 m³/hr |
| Displacement Pressure in Rotor Operation | 85 bar |
| Stroke Count in Rotor Operation | 31 |
